Structural steel truss installation

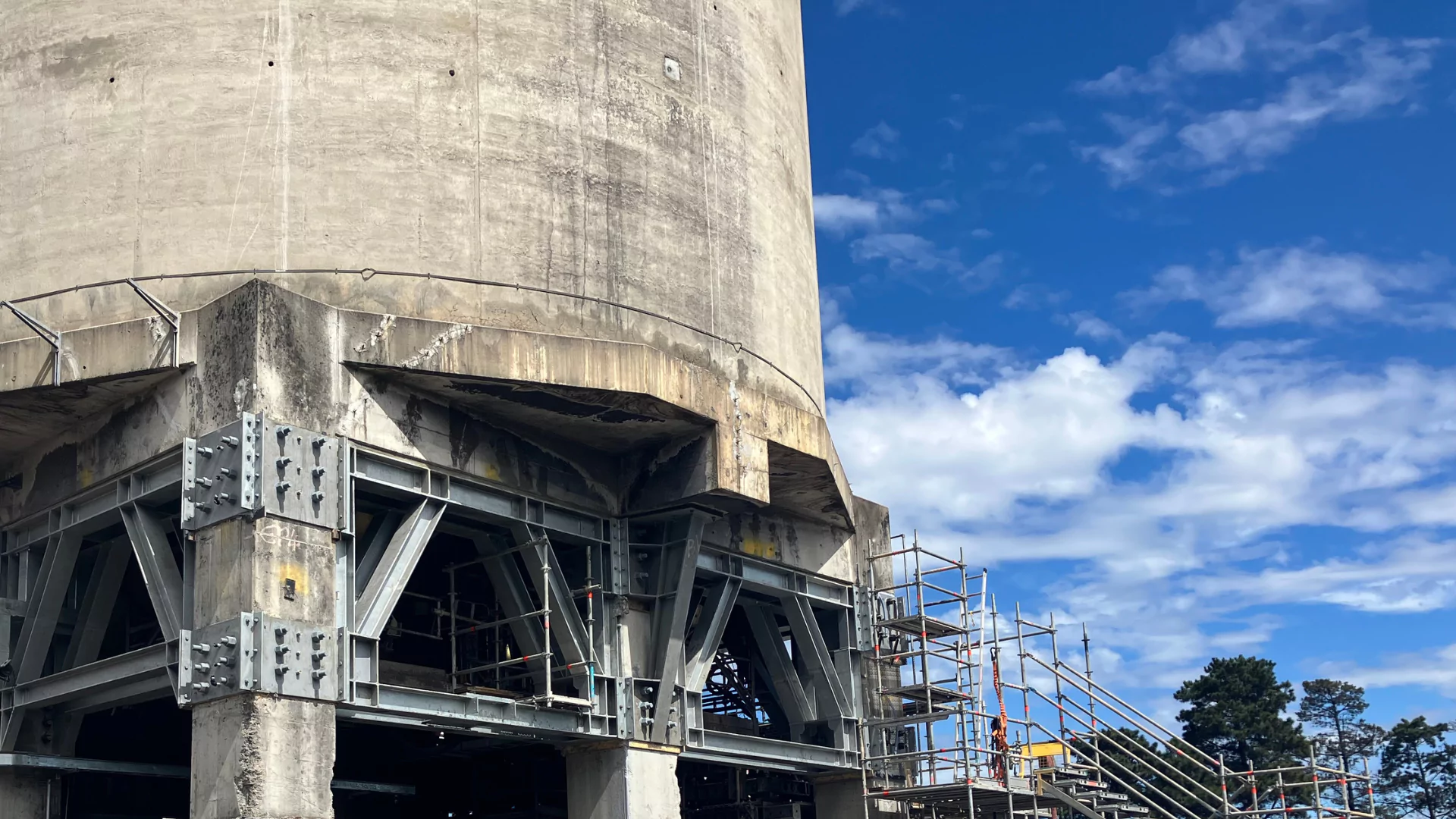

Freyssinet was engaged to supply and install 30 structural steel trusses across three existing concrete load bins. This critical upgrade was designed to restore the structural load capacity of the bins and extend the operational service life of the facility.

General Contractor

Freyssinet Australia Pty Ltd
Customer/Owner:

South 32 / GM3
Engineer

N/A
Freyssinet Subsidiary

Freyssinet Australia (NSW)
Works period

June 2023 - September 2025

Freyssinet Scope

Supply & Install 30 structural steel trusses (4-6 tonne each)
Core existing concrete columns – 1000mm deep, 77mm diameter – 576 off
Supply & Install M50 Freyssibar through each 77mm core hole – 16t total
Supply & install two staircase towers
Design and install temporary works system including access and jacking for installing structural steel

WCCPP Product Loadout Bins

Freyssinet Scope
